Mid-Range Laser Cutter
Why you need a mid-range laser cutter from our Q series.
The Q laser cutter stands for efficient cutting and the best price-performance ratio. With a work area of 1300 x 900 mm and laser power of up to 120 watts, the laser machine cuts and engraves a variety of materials: Acrylic and wood (cut up to 15 mm), textiles, paper and cardboard, signs, craft items, models or decorative items. The Q series has everything a laser cutter needs and offers reliable laser machines for production.
Because you’re more efficient with a laser cutter.
How is the productivity promise fulfilled? By using Trotec core technology: The drive concept and OptiMotionTM provide the speed, the red Trotec laser head enables fast yet precise laser processing. The ultra-compact, lightweight design integrates the most important functions in the smallest of spaces. The InPack TechnologyTM: protects all sensitive components of the mid-range laser cutter from dust.
Because you can work reliably and for a long time with the laser cutter.

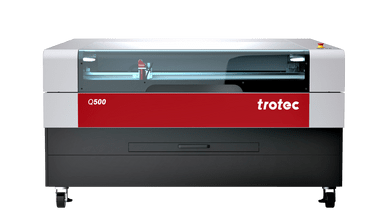

The Q500 Laser Cutter is equipped with a powerful DC CO2laser for fast laser cutting, a CeramiCore® RF CO2 laser for high-quality laser engraving or both. The innovative and patented CeramiCore® laser source concept stands for reliability, durability and high engraving quality. The resonator of the laser source, where the laser beam is generated, is 100% ceramic. One investment – two tools.
Because you can work intuitively with the mid-range laser cutter.
Ruby®, the design software for the laser machine, ensures a smooth workflow. Create graphic, photo and text elements and make adjustments quickly thanks to the integrated workflow. With software that is also a graphics and laser program. And a user interface that inspires. Ruby® connects all your laser machines in one network, locally or on the go.
8x faster cutting.
Move along the curves as if on rails. Our unique OptiMotion™ path control automatically adapts the cutting speed to the geometry. Achieve the best contour accuracy with the highest productivity when cutting. This is an unbeatable advantage, particularly with thin materials such as foils or vector marking.
|3.2 sec.||27 sec.|
|cutting job with Q||cutting job with comparable lasers|
Everything you need for laser cutting.
Cut and engrave a variety of materials. Acrylic, wood, textiles, paper or cardboard up to 15 mm material thickness. The Q series combines all Trotec virtues for efficient laser cutting - everything you need for laser cutting.
|15 mm||> 20|
|max. material thickness||materials|
1 investment, 2 tools.
Achieve perfect results when cutting as well as engraving. The built-in DC CO2 laser sources for fast cutting and the CeramiCore® RF CO2 for high-quality engraving.
|laser system||laser sources|
Work together as a team with different roles and permissions. For example, operators cannot adjust laser parameters, they can only assign them. Students cannot start laser jobs without a teacher. Graphics pre-press and laser production work together seamlessly. Multiple users - 1 laser machine.
Engrave twice as fast.
Engrave twice as fast as inexpensive entry-level laser machines. A sign that takes 10 minutes on an entry-level laser machine can be engraved in less than 5 minutes with the Q series. 2m per second and 2G maximum engraving speed make this possible.
More features of the mid-range laser cutters.
A comparison of the work areas
of our mid-range laser cutters.
Technical data of the Q series.

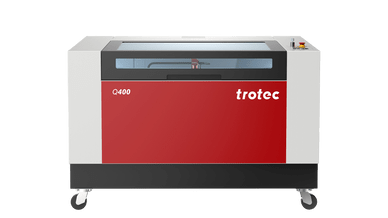

|Q500 DU||Q400 DC||Q400 RF|
|Working area (W x D)||1300 x 900 mm||1030 x 630 mm||1030 x 630 mm|
|Max. height1 of workpiece||45 mm||200 mm||200 mm|
|Loading area (W x D)||1400 x 1150 mm||1130 x 690 mm||1130 x 690 mm|
|Overall dimensions (W x D x H)||1870 x 1655 x 1110 mm||1550 x 1080 x 1080 mm||1550 x 1080 x 1080 mm|
|Max. processing speed||2 m/s||2 m/s||2 m/s|
|Max. acceleration||15 m/sÂ²||15 m/sÂ²||15 m/sÂ²|
|Technology motion system||standard||standard||standard|
|Laser power||Sealed-off CO2 DC 60 / 100 / 120 W and sealed-off CO2 RF CeramiCore® 60 W||Sealed-off CO2 DC 60 / 100 W||Sealed-off CO2 RF CeramiCore® 60 W|
|CDRH laser safety, laser class 2, CE complient, double interlock safety system, kill and key switch||CDRH laser safety, laser class 2, CE complient, double interlock safety system, kill and key switch||CDRH laser safety, laser class 2, CE complient, double interlock safety system, kill and key switch|
|Weight||Approx. 570 kg||Approx. 300 kg||Approx. 300 kg|
|Power consumption||100V – 250V, 1100 – 1500 W||100V – 250V, 1200 W||100V – 250V, 1200 W|
|Power consumption chiller||1800 W||900 W||900 W|
Material compatibility with Q series.
